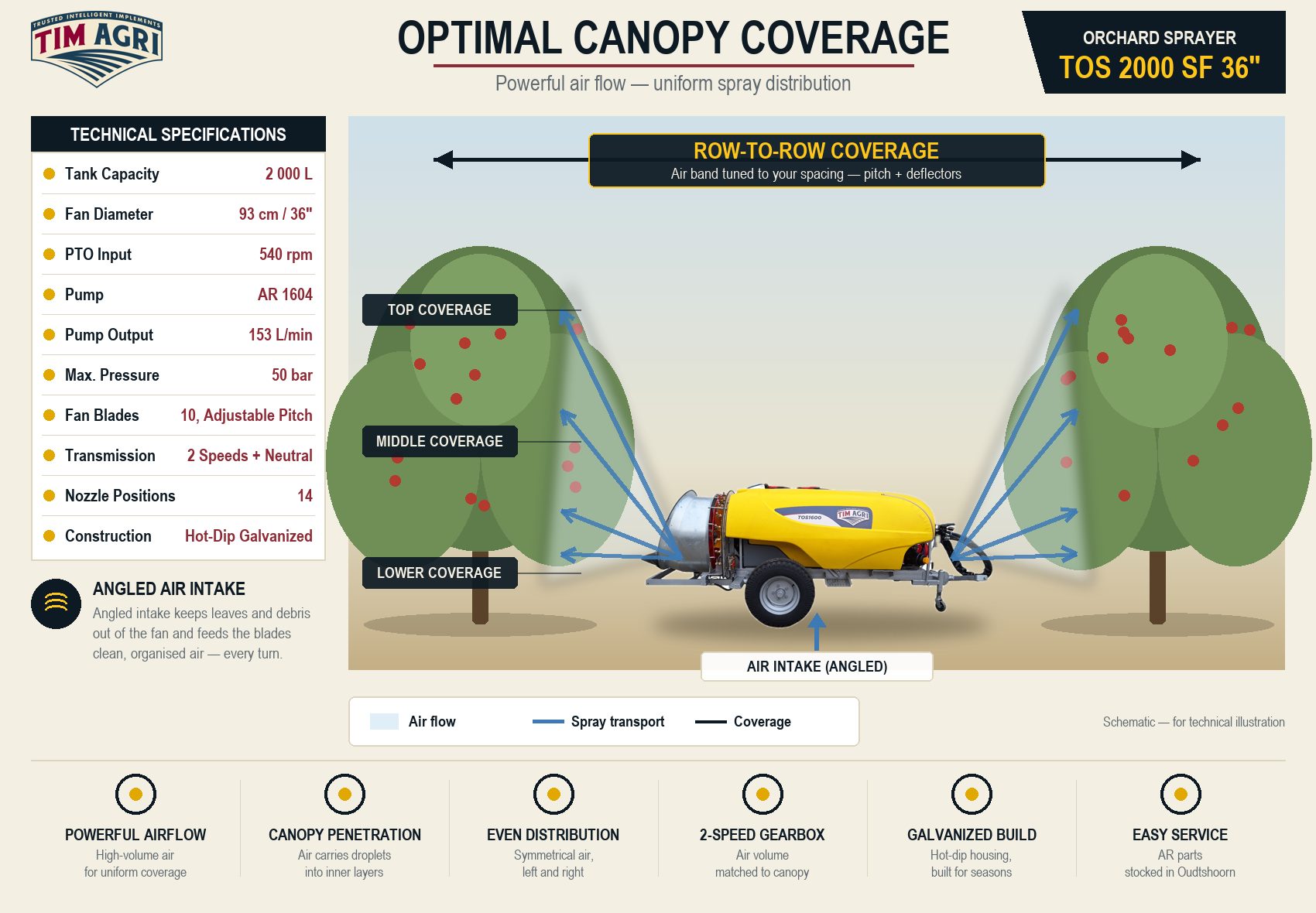

The TOS 2000 SF 36″ Angled is the big-tank version of our orchard workhorse: the same 93 cm angled-intake fan and AR 1604 pump as the TOS 1600 SF, carrying two thousand litres for estates where refill trips eat spray windows.
The angled intake smooths airflow into the fan so more of the PTO's power arrives as organised air at the tree, and wide-angle deflectors stretch the air band up taller rows. With 153 L/min at up to 50 bar, both sides spray full rate with agitation to spare — to the bottom of a much bigger tank.
The 93 cm (36″) fan draws air through an angled intake — cleaner airflow, less turbulence, more of the fan's energy arriving as usable air at the tree. Ten adjustable-pitch blades and a two-speed gearbox with neutral let you tune air volume to canopy stage; wide-angle deflectors spread the air band to cover taller rows without a tower.
The Annovi Reverberi AR 1604 four-diaphragm pump delivers up to 153 litres per minute at 50 bar. That is enough flow to run a full set of nozzles on both sides at orchard pressures and keep the tank agitated — the difference between a suspension that stays mixed and one that settles in row twenty.
The AR By Matic 50 control unit holds your set pressure as sections open and close, with a master shut-off within reach. Set it once at the row end and the dose stays put — no creeping pressure as the tank empties.
Chassis and fan housing are hot-dip galvanised, not painted. Spray chemistry, fertiliser dust and washdowns eat paint in a season or two; galvanising is why these machines still look serviceable when they change hands years later.
Fourteen nozzle holders ring the outlet with standard hollow-cone tips fitted; Albuz, MagnoJet and TeeJet options let you match droplet spectrum to the programme — finer for cover sprays, coarser where drift matters.
| Tank | 2 000 L |
| Fan diameter | 36″ |
| Air intake | Angled |
| Spray angle | Wide |
| Pump | AR 1604 — 153 L/min |
| Max pressure | 50 bar |
| Fan blades | 10, adjustable pitch |
| Gearbox | 2-speed + neutral |
| Nozzle positions | 14 |
| Chassis | Hot-dip galvanised |
Matched to the full-size orchards that dominate South African fruit exports:
It straightens the air path into the fan. A straight-on intake pulls turbulent air that wastes fan energy; the angled intake feeds the blades cleanly, so the same PTO power delivers a stronger, more organised air band at the canopy.
Same tank, same pump, same fan. The SF with wide-angle deflectors covers standard orchards; go Tower when trees are tall and dense enough that ground-level air arrives spent in the top third — tall citrus, avocado, mango, macadamia.
Yes. Pump diaphragms and seals, control unit parts, nozzle bodies and tips are stocked at our Oudtshoorn workshop. Email abie@timagri.com or WhatsApp a photo of the part — most items ship same week.
Every TIMAGRI sprayer is commissioned on your farm: nozzles matched to your rows and target rate, pressure verified across all sections, and the operator walked through the controls before the first tank goes out.
Crop, row spacing, tractor horsepower — that's all we need to quote the right configuration, usually within one working day.
