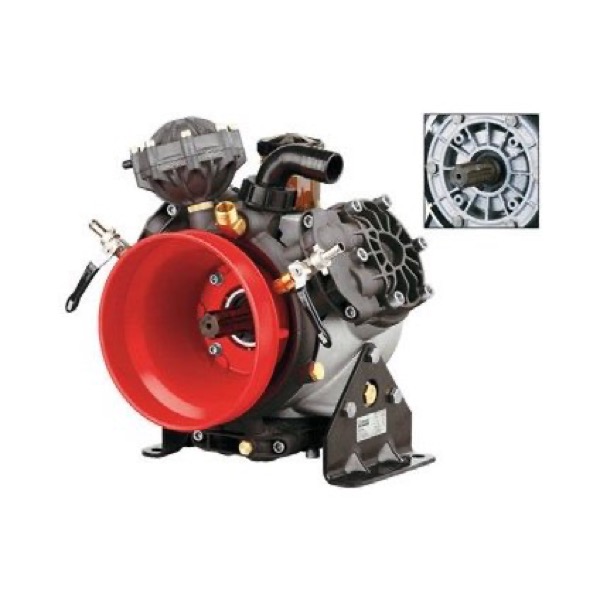

Diaphragm Pumps TP 848
BHA 130 C/C Annovi Reverberi
Three-diaphragm BHA-series pump for high-pressure spraying in orchards and vineyards, rated 127,5 l/min at 50 bar maximum and 550 rpm from 14,4 HP. Liquid-contact parts are anodised aluminium and stainless steel, with NBR diaphragms and seals and a clear oil-level tank. An air-hydraulic damper smooths the flow, with optional remote monitoring, enhanced diaphragm protection, efficient valves, safety features and galvanised fasteners.
| Power (HP) | 14,4 |
| Max. Flow (l/min) | 127,5 |
| Number of Diaphragms | 3 |
| Speed (rpm) | 550 |
| Max. Pressure (bar) | 50 |
| Diaphragm Type | NBR |
| Weight | 40 |
