Diaphragm Pumps TP 32004

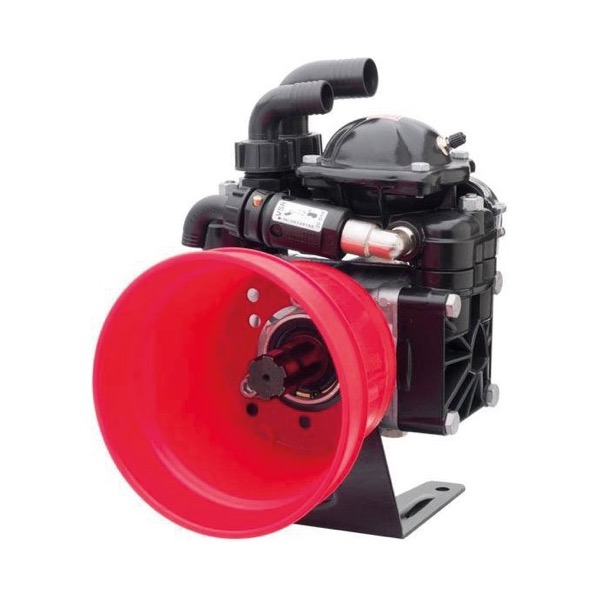

AR 70 BP C BlueFlex Annovi Reverberi
Semi-hydraulic two-diaphragm pump for low-pressure boom spraying, rated 74,1 l/min at 20 bar and 550 rpm from 3,4 HP. Liquid-contact parts are in Rilsan-coated aluminium and AISI 303/304 stainless steel, with BlueFlex diaphragms and NBR seals. The oil-immersed die-cast casing has a clear oil tank and an optional remote oil-level kit, and an air-hydraulic damper reduces hammer effect. Also fitted with an oil drain plug, piston oil-cushion system, spherical valves, sturdy feet, safety valve, cardan guard and Geomet fasteners.
| Power (HP) | 3,4 |
| Max. Flow (l/min) | 74,1 |
| Number of Diaphragms | 2 |
| Speed (rpm) | 550 |
| Max. Pressure (bar) | 20 |
| Diaphragm Type | BLUEFLEX |
| Weight | 11.8 |
