Diaphragm Pumps TP 832

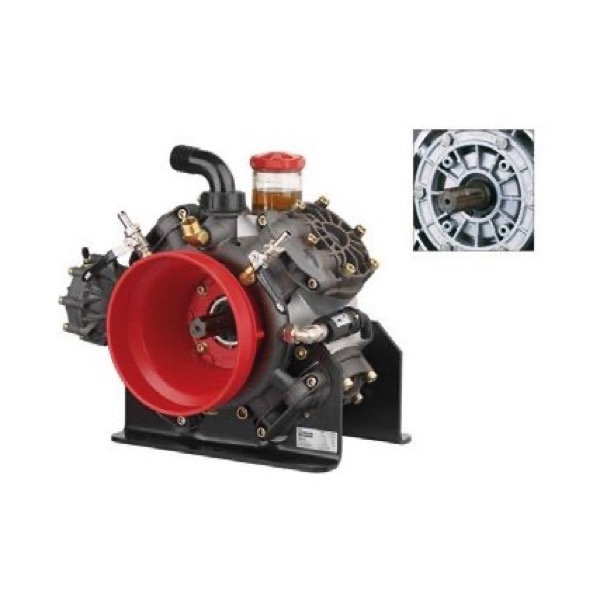

BHA 200 C/C Annovi Reverberi
The largest of the BHA pumps listed here, with four NBR diaphragms, a 50 bar maximum pressure at 550 rpm and a 22,1 HP power requirement, for high-pressure pesticide application in orchards and vineyards. Liquid-contact parts are anodised aluminium and stainless steel, with NBR seals and a clear oil-level tank. It runs smoothly thanks to an air-hydraulic damper and offers optional remote monitoring, enhanced diaphragm protection, efficient valves, safety features and galvanised fasteners.
| Power (HP) | 22,1 |
| Number of Diaphragms | 4 |
| Speed (rpm) | 550 |
| Max. Pressure (bar) | 50 |
| Diaphragm Type | NBR |
| Weight | 51 |
