Diaphragm Pumps TP 765

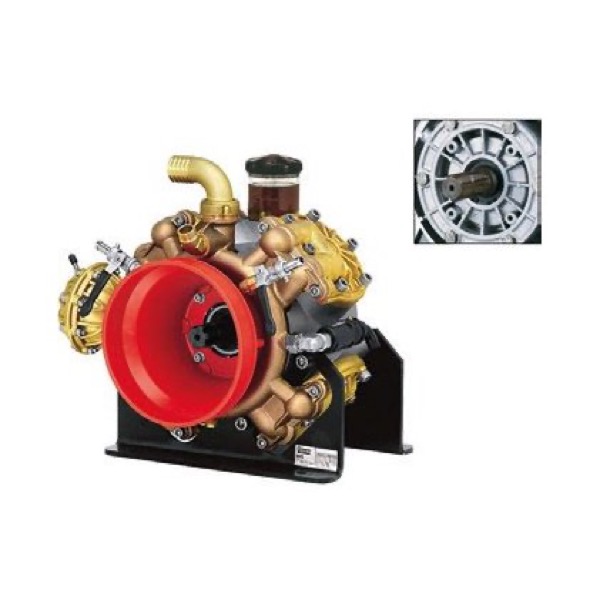

BHS 170 C/C Annovi Reverberi
Semi-hydraulic four-diaphragm pump for high-pressure spraying in orchards and vineyards, rated 160,4 l/min at 50 bar and 550 rpm with 19,3 HP. It has separate suction and delivery manifolds, liquid-contact parts in brass/bronze and AISI 303/304 stainless steel, and NBR diaphragms and seals. The oil-immersed die-cast casing has a clear oil tank and optional remote sensor, and an air-hydraulic damper reduces hammer effect. Includes an oil drain plug, oil-cushion pistons, a reinforced diaphragm system and spherical valves for high efficiency.
| Power (HP) | 19,3 |
| Max. Flow (l/min) | 160,4 |
| Number of Diaphragms | 4 |
| Speed (rpm) | 550 |
| Max. Pressure (bar) | 50 |
| Diaphragm Type | NBR |
| Weight | 65 |
