Diaphragm Pumps TP 759

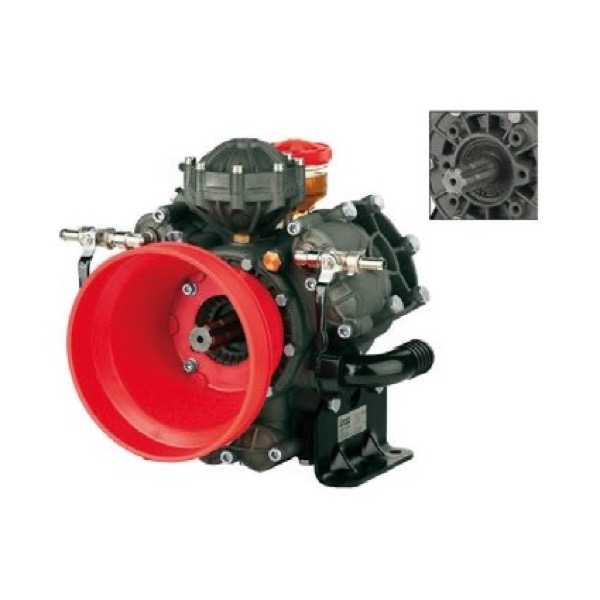

AR 1203 C/C Annovi Reverberi
High-pressure three-diaphragm pump for orchard and vineyard mistblowers, with 115,8 l/min maximum flow at 50 bar and 550 rpm, and a power requirement of 13,6 HP. Anodised aluminium and stainless steel parts carry the liquid, with NBR diaphragms and seals and a clear oil-level tank. The air-hydraulic damper gives smoother operation, and there is optional remote monitoring, enhanced diaphragm protection, efficient valves, safety features and galvanised fasteners.
| Power (HP) | 13,6 |
| Max. Flow (l/min) | 115,8 |
| Number of Diaphragms | 3 |
| Speed (rpm) | 550 |
| Max. Pressure (bar) | 50 |
| Diaphragm Type | NBR |
| Weight | 31.2 |
