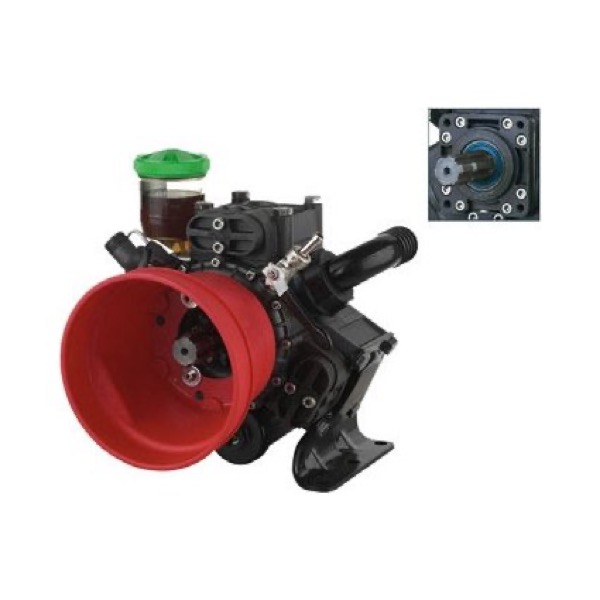

Diaphragm Pumps TP 625
AR 713 C/C Annovi Reverberi
Semi-hydraulic three-diaphragm pump for high-pressure spraying in orchards and vineyards, rated 76,1 l/min at 40 bar and 550 rpm with 7,3 HP. Liquid-contact parts are anodised aluminium and stainless steel, with NBR diaphragms and seals and a clear oil-level tank. An air-hydraulic damper smooths delivery, and the pump has optional remote monitoring, reinforced diaphragm protection, efficient valves, safety features and galvanised fasteners.
| Power (HP) | 7,3 |
| Max. Flow (l/min) | 76,1 |
| Number of Diaphragms | 3 |
| Speed (rpm) | 550 |
| Max. Pressure (bar) | 40 |
| Diaphragm Type | NBR |
| Weight | 20.5 |
