Diaphragm Pumps TP 32390

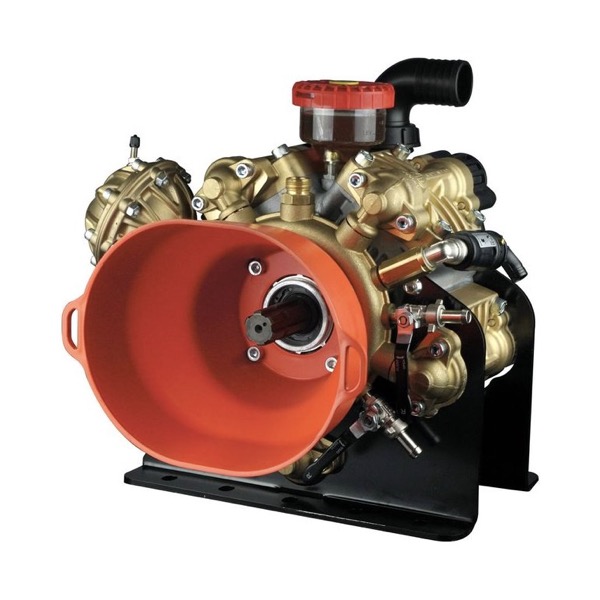

BHS 240 AP C/C
Five-diaphragm high-pressure pump at the top of the BHS range listed here, rated 238.4 l/min at up to 50 bar and 550 rpm with a 29.4 HP requirement. BlueFlex diaphragms are fitted. It is the class of pump used on large orchard mistblowers where high flow and high pressure are both needed.
| Power (HP) | 29.4 |
| Max. Flow (l/min) | 238.4 |
| Number of Diaphragms | 5 |
| Speed (rpm) | 550 |
| Max. Pressure (bar) | 50 |
| Diaphragm Type | BLUEFLEX |
| Weight | 11.8 |
