Diaphragm Pumps TP 32099

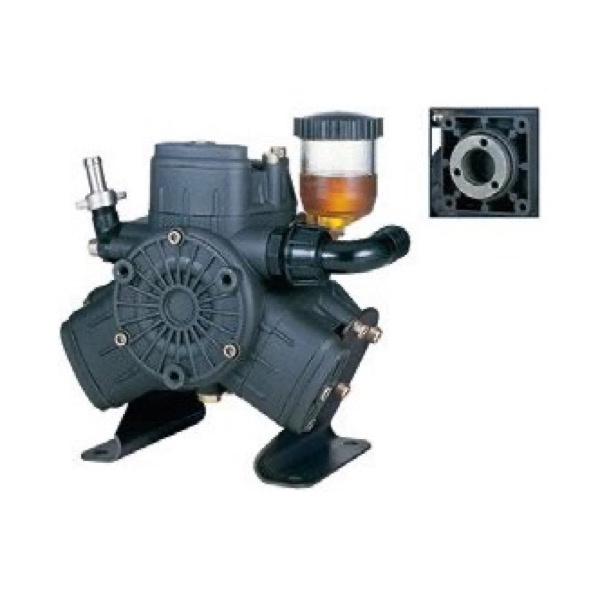

AR 303 SP BlueFlex Annovi Reverberi
Semi-hydraulic three-diaphragm pump for higher-pressure work, rated 34,7 l/min at up to 40 bar and 550 rpm with a 3 HP requirement. It can be driven by electric motors or internal combustion engines, making it suitable for greenhouse and orchard spraying. Segmented pistons, galvanised connection elements and flanges for motor mounting are fitted, and the diaphragms are BlueFlex.
| Power (HP) | 3 |
| Max. Flow (l/min) | 34,7 |
| Number of Diaphragms | 3 |
| Speed (rpm) | 550 |
| Max. Pressure (bar) | 40 |
| Diaphragm Type | BLUEFLEX |
| Weight | 9 |
