Diaphragm Pumps TP 32034

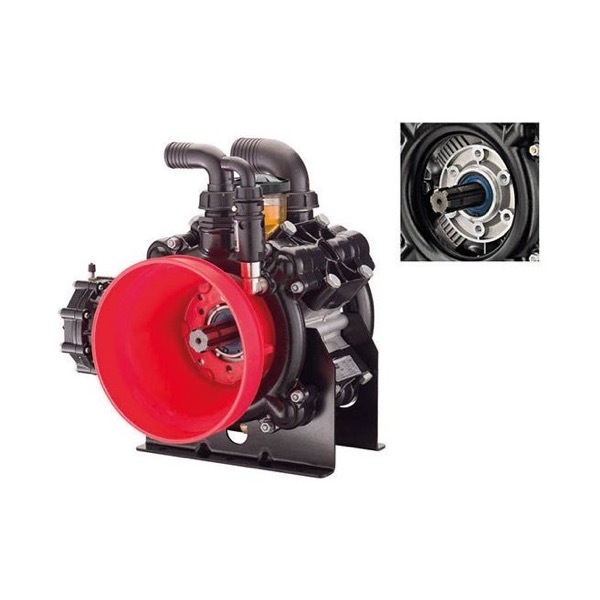

AR 160 BP C/C Annovi Reverberi
Semi-hydraulic pump with three BlueFlex diaphragms for low-pressure boom spraying, rated 166,2 l/min at 20 bar and 550 rpm with an 8,4 HP power requirement. It is made to resist aggressive fluids in chemical and agricultural pesticide spraying. Safety is covered by sturdy mounting feet, a built-in safety valve and cardan protection.
| Power (HP) | 8,4 |
| Max. Flow (l/min) | 166,2 |
| Number of Diaphragms | 3 |
| Speed (rpm) | 550 |
| Max. Pressure (bar) | 20 |
| Diaphragm Type | BLUEFLEX |
| Weight | 27.5 |
