The 7-section field kit for wide booms: Nova 2N navigation, an Aqua 700 control box for manual override and the AIR ECU on the sprayer. The valve harness plugs into ECU sockets 1 and 2 and the cab link is wireless. Seven boom sections switch automatically from GPS position, rate control holds the dose, and the 20 bar Wolf flowmeter kit adds a 2W section valve to the 5W valve. A Hydra 500 or 700 hydraulic boom box can be added on ECU socket 4.
Best for: TFS trailed sprayers with 24–30 m booms split into 7 sections.
Straight-line guidance with shift-line and pause point; field perimeter recorded with GNSS.
Automatic Section Control
7 sections switch on/off automatically from the field map and GPS position; Aqua 700 switches for manual override.
Automatic Rate Control
Target rate held constant in real time regardless of speed or field conditions.
AIR ECU Wireless Link
The 7-way valve harness plugs into ECU sockets 1 + 2 on the sprayer; the cab link is wireless.
20 bar Wolf Flowmeter Kit
Main control valve, line filter, control valve, 5W + 2W section valves for wide booms.
Hydra Ready
Add a Hydra 500 / 700 hydraulic boom kit on ECU socket 4 — both kits run on one ECU.
Pakket & bestelkodes
Wat in die boks is
Kernelemente kom saam met elke eenheid; opsies word op aanvraag gekwoteer. Bestelkodes stem ooreen met die Tim Digitize-katalogus.
Kernelemente · 9
TNOV2N.01Nova 2N Computer
SIM0142 m Power Cable
KYP054Smart GNSS Harness
KYP046AIR ECU Box
SIM106AIR ECU Main Cable · 12 V + 2 way
SIM107AIR ECU Cable · 5 way
KYP029Triple Suction Cup Mount · 6 cm short arm
KYP036Cross 200 Smart GNSS
TAQU700.01Aqua 700 Control Box
Opsioneel · 7
KYP021Level Sensor 0.4 bar · 2 m cable
KYP022Pressure Sensor 25 bar · G 1/4
THYD500.01Hydra 500 Control Box
THYD700.01Hydra 700 Control Box
SIM109AIR ECU Hydra Cable
KYP067Cross 300 Smart Antenna
KYP055GNSS 14 Pin Cable
Vereiste produkte op die spuit
Klepstelle, sensors en fittings wat die stelsel op die masjien nodig het — ons kwoteer dit saam met die rekenaar en monteer dit by inwerkingstelling.
20 bar 7W Wolf flowmeter electrovalve kit
TA 871T50220 bar Main Control Valve
TA 863T024SProportional Valve
TA 32621M3Line Filter
TA 4626415Wolf Flow Meter
TA 863T01505W Section Valve
TA 863T01202W Section Valve
Fittings & manometer
TA 1091313Hose Connector 13 mm · ×7
TA G11058VGasket · ×7
TA 1190425Elbow Fitting · ×1
TA 010004Fitting Set · ×1
TA 911025Manometer · ×1
Optionals
TA 864050250200 l/min Main Control Valve
TA 46211A4A5B5ORION Flow Meter
TA 1091316Hose Connector 16 mm
AIR ECU · draadlose klepkoppelvlak

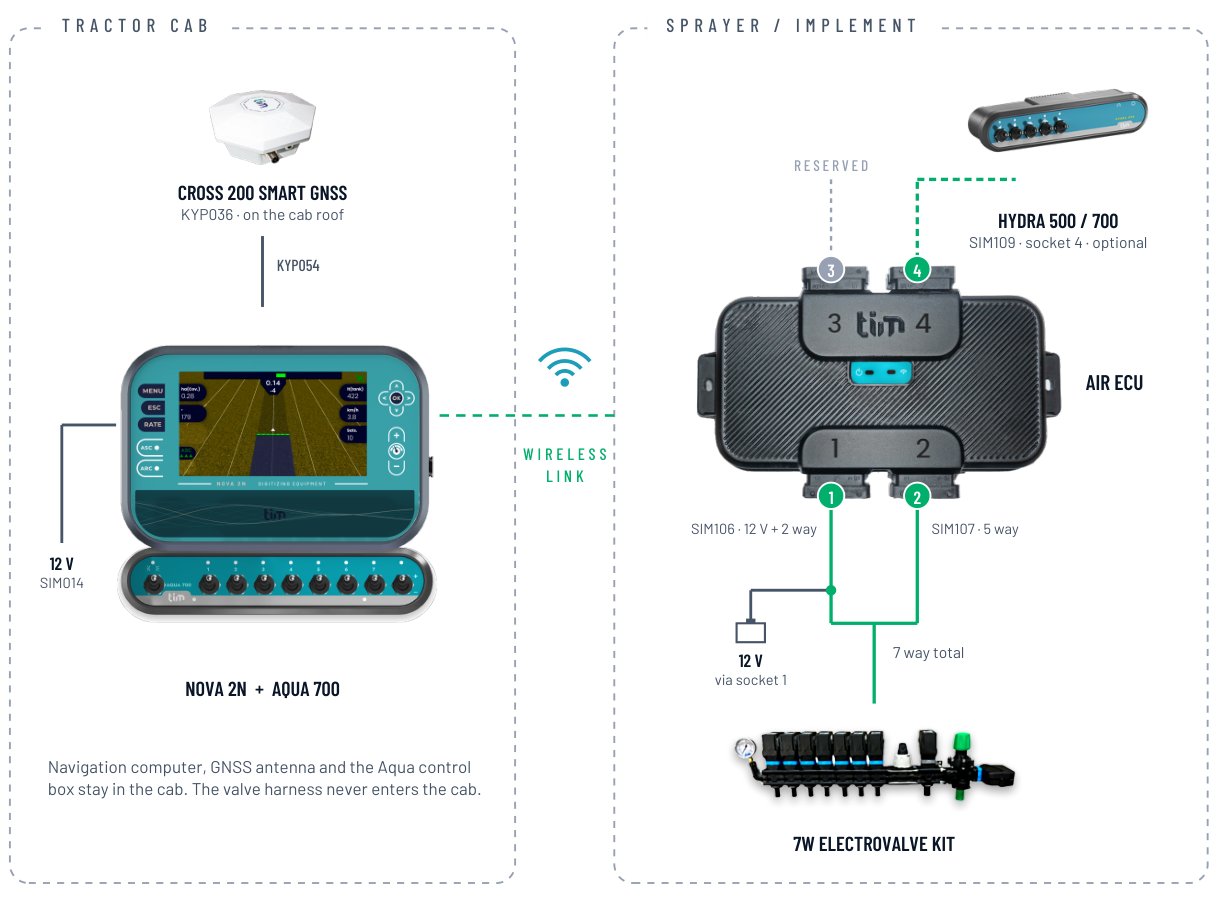

Hoe dit koppel
Field version: the Aqua 700 valve harness plugs into sockets 1 + 2 of the AIR ECU on the sprayer; the link to the Nova 2N and the Aqua 700 box in the cab is wireless.
AIR ECU
Die AIR ECU word op die spuit gemonteer, langs die kleppe. Die klepbedrading prop direk in sy verseëlde, genommerde sokke en die ECU praat draadloos met die kas in die kajuit — geen dik klepkabel hoef in die trekkerkajuit getrek te word nie. Krag- en draadlose-skakel-LED's op die voorplaat wys die status met een oogopslag.
