Rate Controller
Keeps the set application rate constant at all tractor speeds.
Boord-dosisbeheerder TNOV110.01
Nova 110
The Nova 110 is the Nova 100 workflow adapted to mistblowers: it holds the set rate as speed changes between rows, shuts off below minimum pressure and speed, and works with 40 bar 2-way Orion or Wolf electro valve kits for high-pressure orchard spraying. A 60 bar pressure sensor is available as an option.
Best for: TOS orchard sprayers and other axial-fan mistblowers in citrus, pome, stone fruit and vineyards.
| Function | Automatic rate control · orchard |
| Valve kit | 40 bar 2W Orion or Wolf |
| Display | 20 × 4 character LCD |
| Jobs stored | 10 |
| GNSS | Compact GNSS included (KYP044) |
| Pressure sensor option | 60 bar · G 1/4 |
| Power | 12 V DC |
| TIM App reports | Yes |
Sleutelkenmerke
Nova 110
Large Display
20 × 4 character screen for user-friendly navigation.
Job Registration
10 jobs can be saved and recalled at any time.
Automatic Spray Shut-off
Spraying stops below the minimum set pressure and speed.
Min–Max Pressure
The system keeps pressure between the set operating limits during the job.
Data Transfer
SD card export and USB connection for software updates.
Pakket & bestelkodes
Wat in die boks is
Kernelemente kom saam met elke eenheid; opsies word op aanvraag gekwoteer. Bestelkodes stem ooreen met die Tim Digitize-katalogus.
Kernelemente · 4
- TNOV110.01Nova 110 Computer
- SIM0142 m Power Cable
- KYP044Compact GNSS
- SIM021Nova 110 · 3 + 1.5 m Valve Cable
Opsioneel · 5
- KYP029Triple Suction Cup Mount · 6 cm short arm
- KYP037Screw Mount · 6 cm short arm
- KYP030Speed Sensor · 2 m cable
- KYP021Level Sensor 0.4 bar · 2 m cable
- KYP022Pressure Sensor 60 bar · G 1/4
Vereiste produkte op die spuit
Klepstelle, sensors en fittings wat die stelsel op die masjien nodig het — ons kwoteer dit saam met die rekenaar en monteer dit by inwerkingstelling.
2W electro valve Orion kit
- TA 881B14252D40 bar 2W Electro Valve Orion Kit
- TA 010004Fitting Set · ×1
- TA 1190425Elbow Fitting · ×1
- TA 911040Manometer · ×1
2W electro valve Wolf kit (alternative)
- TA 881B14252K40 bar 2W Electro Valve Wolf Kit
- TA 010004Fitting Set · ×1
- TA 1190425Elbow Fitting · ×1
- TA 911040Manometer · ×1
Meer presisie-toerusting
Dosisbeheer-rekenaar
Nova 100
Hou die vereiste toedieningsdosis (l/ha) by elke trekkerspoed met vloei-, druk- en spoedsensors — 5 balkseksies, 10 gestoorde take.
Outomatiese Seksiebeheer-rekenaar
Nova 200
GNSS-geleide bespuiting: outomatiese seksiebeheer, outomatiese dosisbeheer, landgrense en A–B-leiding op een rekenaar — 7 seksies, Cross 200-antenna ingesluit.

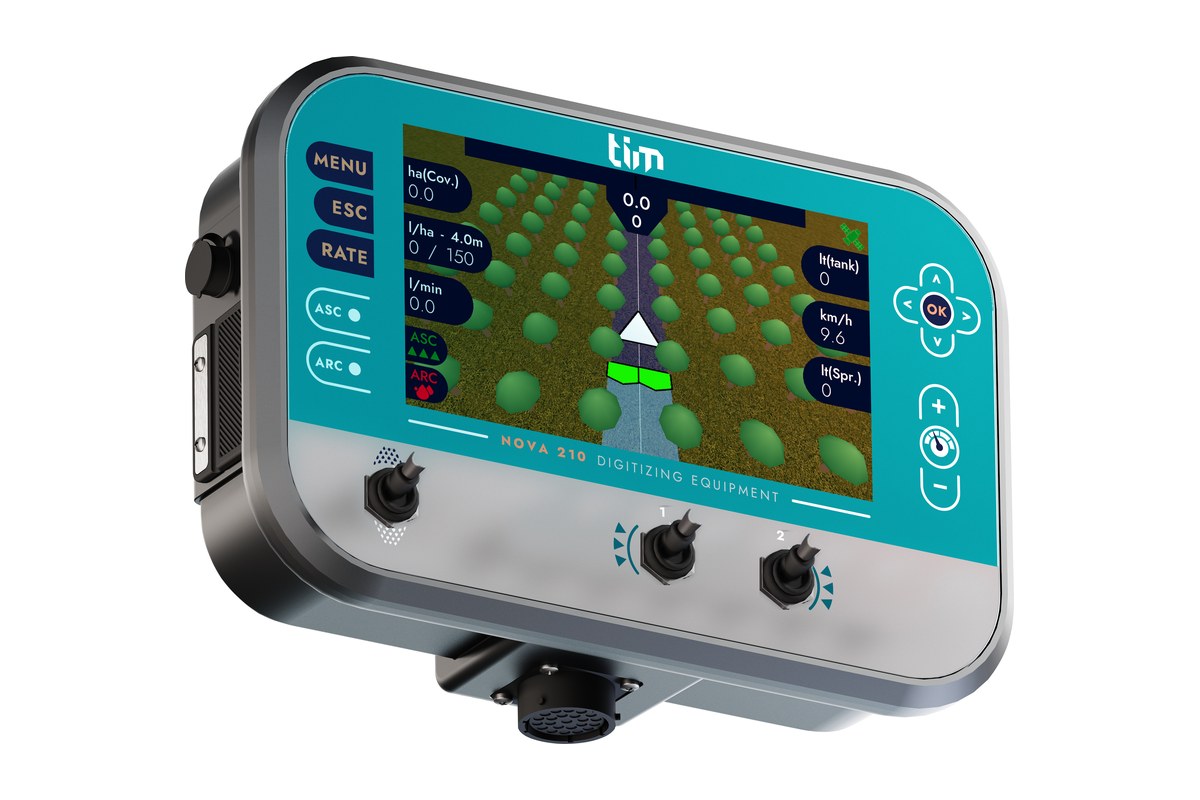

Boord-navigasiebeheer-rekenaar
