The Aqua 200 is the simplest way to take spraying control into the cab: two section switches, a main valve switch and a pressure up/down control on one box, with a 4.5 m valve cable to the 40 bar 2-way electro valve kit on the sprayer. No chemical hoses are carried inside the cabin.
Best for: orchard sprayers and small field units with two sections that do not need a rate controller.
Increase or decrease the pressure manually; adjusts spraying dosage during operation.
Control Box
Controls 2 section valves open/close, main valve open/close and pressure regulation.
In-Cab Control
No chemical hoses carried inside the cabin — safe and easy spraying control.
AIR ECU Version
Also available as Aqua 200 AIR with the wireless valve interface — see below.
Package & order codes
What's in the box
Core elements ship with every unit; optionals are quoted on request. Order codes match the Tim Digitize catalogue.
Core elements · 3
TAQU200.012W Control Box
SIM0242 m Power Cable
SIM0254.5 m 2W Valve Cable
Optional · 1
KYP037Screw Mount · 6 cm short arm
Required products on the sprayer
Valve kits, sensors and fittings the system needs on the machine — we quote them together with the computer and fit them at commissioning.
40 bar 2W electro valve kit
TA 88121424240 bar 2W Electro Valve Kit
Fittings & manometer
TA 1191425Elbow Fitting · ×1
TA 010004Fitting Set · ×1
TA 911040Manometer · ×1
TA G11054Gasket · ×1
TA 119342545° Elbow Fitting · optional
TA 1091425Hose Connector · optional
AIR ECU · wireless valve interface

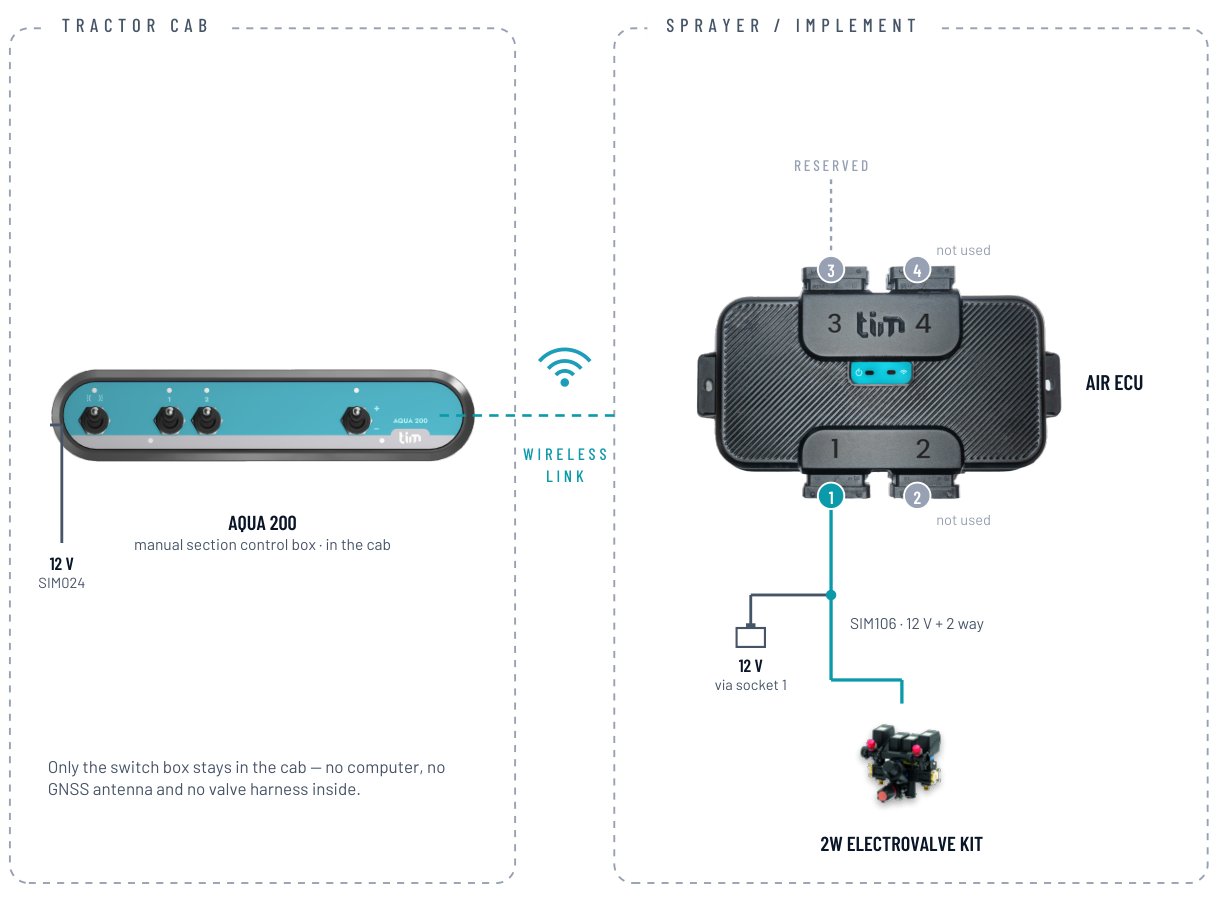

Aqua 200 AIR TAQU200.02
The Aqua 200 control box with the AIR ECU wireless valve interface — manual section control from the cab, valves connected on the sprayer, no valve cable through the cab. The 2-way valve harness plugs into socket 1 of the AIR ECU.
AIR ECU
The AIR ECU is mounted on the sprayer, next to the valves. The valve harness plugs straight into its sealed, numbered sockets and the ECU talks to the box in the cab wirelessly — no thick valve cable has to be pulled into the tractor cab. Power and wireless-link LEDs on the front plate show the status at a glance.
